In addition, a simple GUI can be implemented via capacitive touch or push button(s), and/or a low power LCD (i.e., eInk) to display local sensor values and enter data. A more sophisticated GUI may also be achieved via a master actuator, IP gateway or smartphone. A real-time clock (RTC) could easily be added to switch between different operation modes, depending on the day, time, holiday, etc. All RTCs could also be synchronized within the system....
Thursday, 01 October 2020 10:15

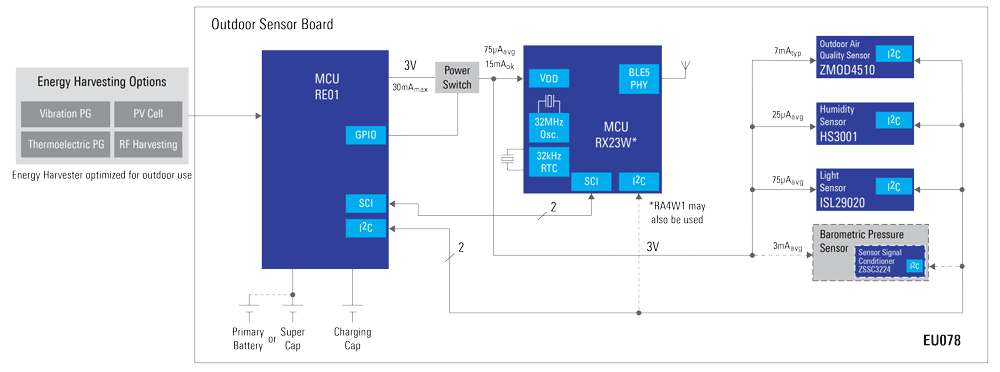

Renesas:Outdoor Sensor for Automatic Home or Building HVAC System
The outdoor sensor unit(s) for automatic home or building HVAC systems provide outdoor data from one or multiple bearings (North, East, West, South) to a master actuator. This can be one or all of the following data:
- Outdoor air quality (OAQ according to the Environmental Protection Agency)
- Temperature and relative humidity (degrees, percentage)
- Light/Sun (lux)
- Barometric pressure (mbar)
