Overview
2.4/5 GHz Dual-Band 2x2 Wi-Fi® 6 (802.11ax) + Bluetooth®5.1
The 88W9098 wireless SoC is the industry’s first Wi-Fi 6 solution based on the latest IEEE 802.11ax standard with an innovative concurrent dual Wi-Fi and dual-mode Bluetooth 5.1 architecture. The 88W9098 combo solution enables gigabit-level performance, superior reliability and enhanced security to enable high performance, flexible solutions for the IoT, Access and Industrial markets.
Concurrent Dual 2x2 Wi-Fi Operation
- IEEE 802.11ax / IEEE 802.11ac
- 20/40/80 MHz channel bandwidths
- Zero Wait DFS
- Implicit and explicit beamforming
Host Interface (Wi-Fi + Bluetooth)
- PCIe 2.0 + UART
- SDIO 3.0 + SDIO 3.0
- SDIO 3.0 + UART
- USB 3
方框图
Features
1. Bluetooth Class 1.5 and Class 2
2. Bluetooth Low Energy (LE) 1 Mbit/s & 2 Mbit/s
3. Bluetooth Low Energy Long Range
2. Bluetooth Low Energy (LE) 1 Mbit/s & 2 Mbit/s
3. Bluetooth Low Energy Long Range
Features
stereo

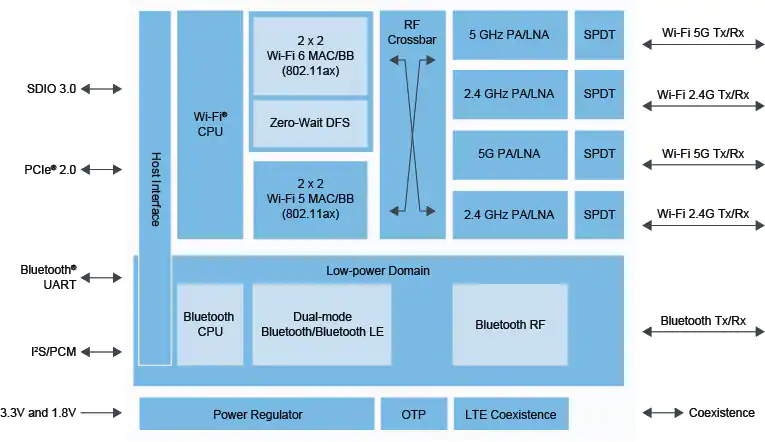

Block Diagram

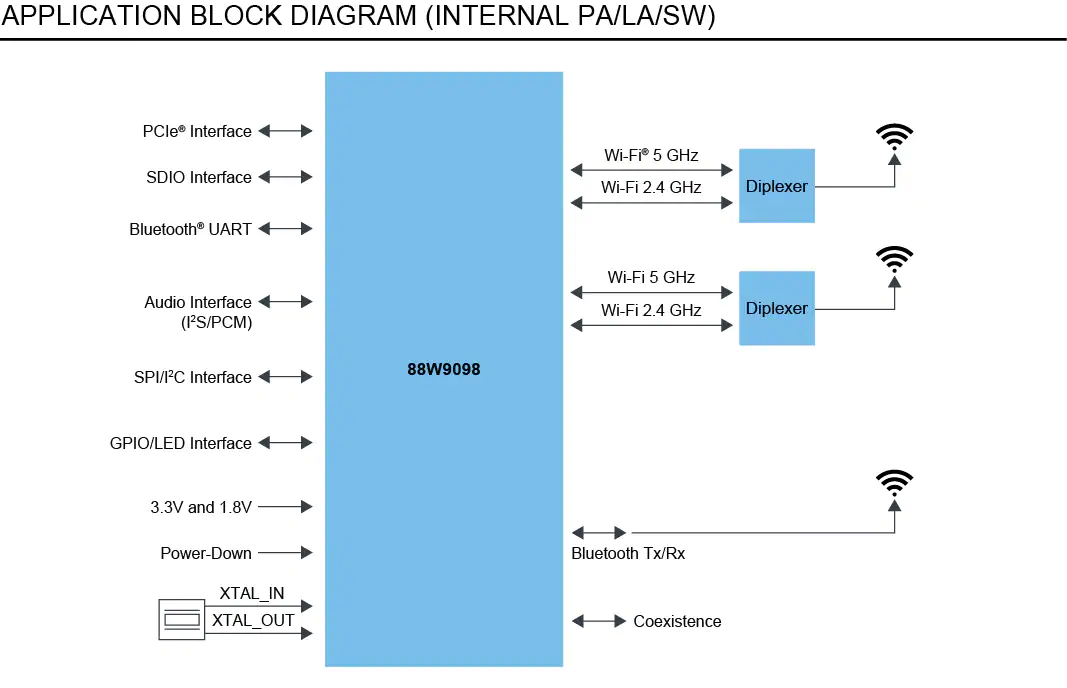

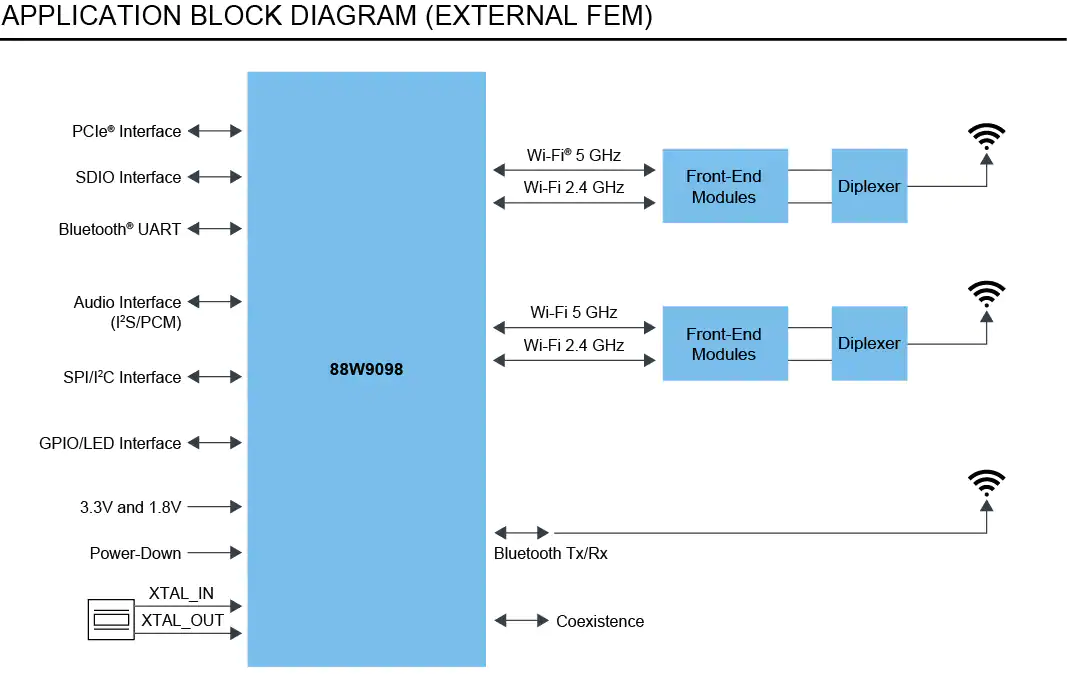

Application Note
Industrial Building Control Healthcare Smart Home Audio and Video Entertainment Systems Digital TV Technologies Gateway Mobile Router Security Control Systems
